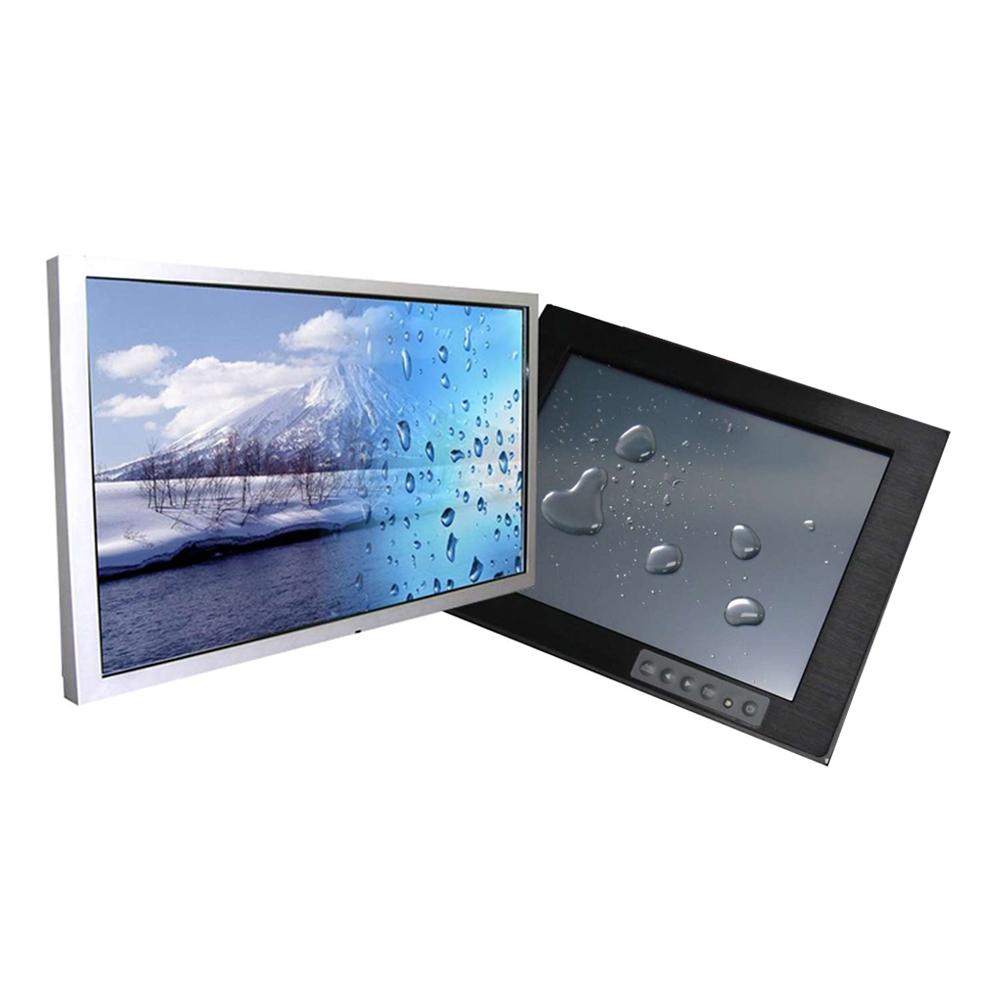

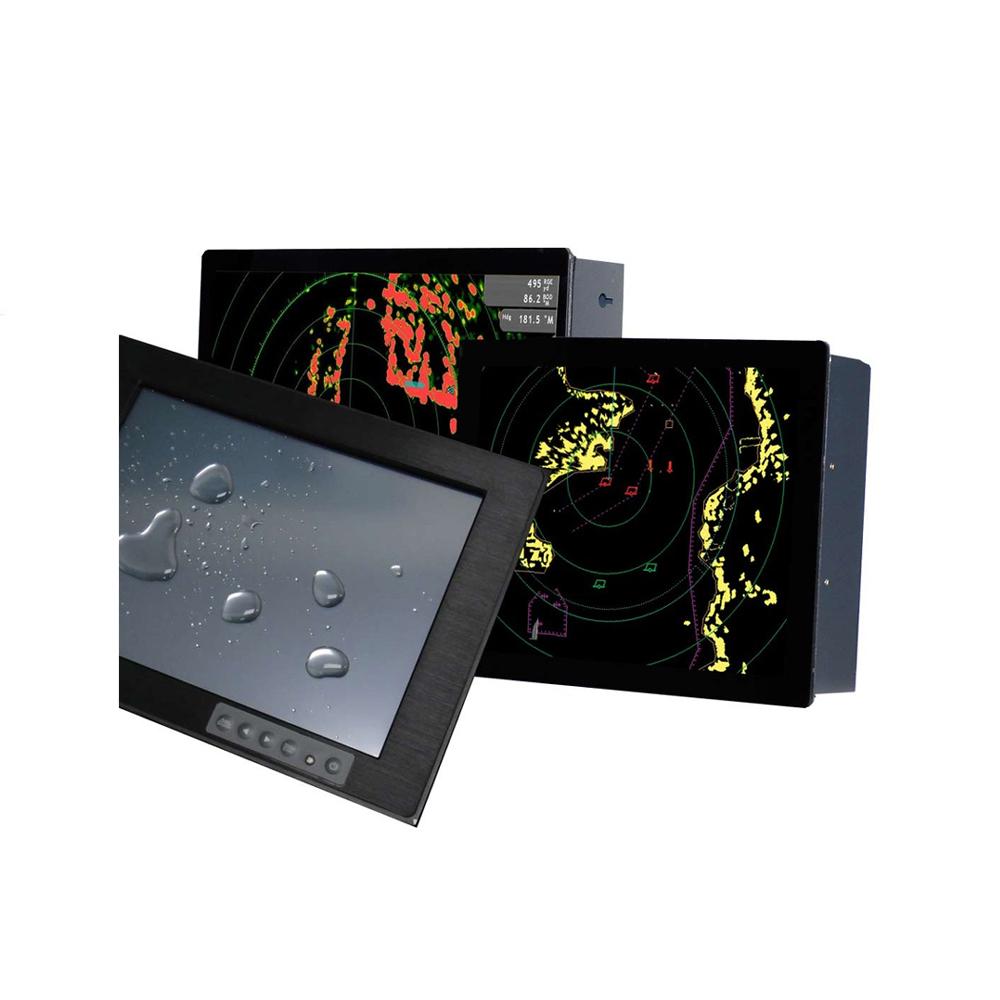

• ADPS's waterproof monitor are specifically designed to withstand use in harsh marine environments. As a leading supplier of marine displays, ADPS has worldwide technology in the marine industry. Our rugged marine-grade LCD displays are engineered to handle extreme weather, light, and temperature conditions. Our displays are sealed and built to stringent IP65 standards.

• All-WEATHERPROOF
Our displays support All-Weatherproof our displays have waterproof, sunlight-readable and Auto-dimming capability, making them fully functional displays for all harsh environments
• HIGH BRIGHTNESS
Our displays support high-brightness technology to deliver clear display even under direct sunlight or in high ambient light conditions.
• FULL IP67
Our displays are sealed and built to stringent IP67 standard also provides extra protection against shock and vibration
• CUSTOM DESIGN
We can provide custom design according to customer's request. And we provide Rugged, lightweight, highly adaptable aluminum design.
• INPUT POWER
We can provide input power DC 9~36V. And ADPS can customize according to the customer's requirements to the specifications of the ships to be installed.
• THE DIMMING KNOB
Our display offer dimming function to adjust brightness from nearly 0% to 100% via a easy to use VR knob. And we support Ease of use front panel OSD control function.

Model	RXA104-IP	RXA150-IP	RXA170-IP	RXA190-IP	RXA215-IP	RXA320-IP
Size	10.4"	15.0"	17.0"	19.0"	21.5"	32"
Panel Type	LED High brightness	LED High brightness	LED High brightness	LED High brightness	LED High brightness	LED High brightness
Resolution	800 * 600	1024 * 768	1280 * 1024	1280 * 1024	1920 * 1080	1920 * 1080
Brightness	1300 ㏅/m² (Option)	2000 ㏅/m² (Option)	1000 ㏅/m² (Option)	1000 ㏅/m² (Option)	1000 ㏅/m² (Option)	2000 ㏅/m² (Option)
Contrast Ratio	500:1	800:1	800:1	800:1	1000:1	1300:1
Viewing Angle (U/D, L/R)	65/55,70/70	70/75,75/75	89/89,89/89	89/89,89/89	89/89,89/89	89/89,89/89
Response Time	8 ㎳/sec	18 ㎳/sec	5 ㎳/sec	18 ㎳/sec	18 ㎳/sec	22 ㎳/sec
Colors	262K Colors	16.7M Colors	16.7M Colors	16.7M Colors	16.7M Colors	16.7M Colors
Operating Temp	0 ~ 50°C	0 ~ 50°C	0 ~ 50°C	0 ~ 50°C	0 ~ 50°C	-10 ~ 60°C
Input Interface	RGB,DVI S & BNC-Video	RGB,DVI S & BNC-Video	RGB,DVI S & BNC-Video	RGB,DVI S & BNC-Video	RGB,DVI S & BNC-Video	RGB,DVI S & BNC-Video
Dimming Control	100% Manual Auto Dimming	100% Manual Auto Dimming	100% Manual Auto Dimming	100% Manual Auto Dimming	100% Manual Auto Dimming	100% Manual Auto Dimming
Front Protection	IP65 Compliant	IP65 Compliant	IP65 Compliant	IP65 Compliant	IP65 Compliant	IP65 Compliant
Power Input	DC 12V	DC 12V	DC 12V	DC 12V	DC 12V	DC 12V
Power Consumption	8.0Watt (Typ)	15.5Watt (Typ)	18Watt (Typ)	25.5Watt (Typ)	35.5Watt (Typ)	38Watt (Typ)
Other Options	Optical Bonding	Optical Bonding	Optical Bonding	Optical Bonding	Optical Bonding	Optical Bonding
	Touch Screen	Touch Screen	Touch Screen	Touch Screen	Touch Screen	Touch Screen
